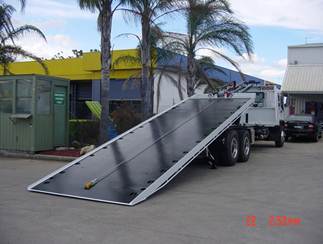

1100Fits all Suburban tilt-slide bodies
1100 SeriesFixed Headboard
Advantages
- More overhead clearance in confined spaces
- Body can extend rearward for longer loads
- Rear extension helps redistribute axle load
- Air body lock allows travel while extended
Construction & features
- All headboard styles available
- Heavy-duty body guides
- Floor-mounted winch and work lights
- Recessed tool trays and pull-out steps
- Extendable RTA-compliant rear lightboard
1800For vehicles up to 12,000 kg GVM
1800 SeriesFolding Cradle
1,850 kg SWL at full extension1,000 kg vertical tow-ball capacity4,500 kg towing capacity
Hydraulics
- Twin 2.5-inch × 12-inch lift cylinders
- Independent cylinder counterbalance valves
- 2.5-inch × 48-inch extension cylinder
- Pin-eye mounts, Teflon bushes and dead-man controls
Construction & features
- Heavy-duty RHS extension booms
- Grease-free main pivot
- Adjustable wheel pins and straightening guides
- Tow-ball, chain and wheel-strap mounts
- Mechanical lock and low-profile head
2000For vehicles up to 12,000 kg GVM
2000 SeriesL-Arm Folding Cradle
2,000 kg SWL at full extension1,000 kg vertical tow-ball capacity4,500 kg towing capacity
Hydraulics
- Twin 2.5-inch × 12-inch lift cylinders
- Independent cylinder counterbalance valves
- 2.5-inch × 48-inch extension cylinder
- Pin-eye mounts, Teflon bushes and dead-man controls
Construction & features
- Heavy-duty RHS extension booms
- Grease-free pivot and extension boom
- Adjustable L-arms and wheel-height pins
- Tow-ball, chain and wheel-strap mounts
- Mechanical lock, low-profile head and 2K enamel finish
